Issue

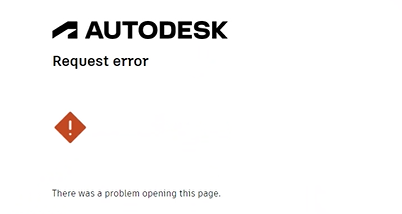

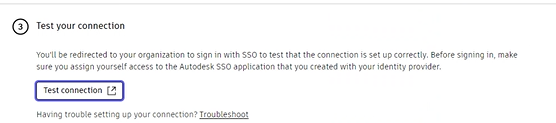

When testing the connection to ADFS in the Autodesk Account, the following error is presented:



Cause

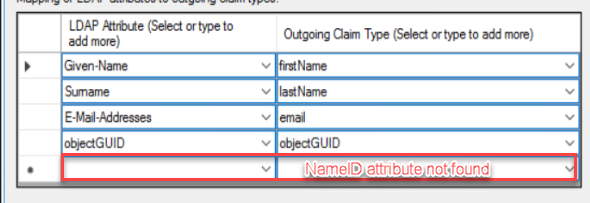

Missing the Name ID attribute:



Affected Software

Autodesk Account / ADFS / SSO

Resolution

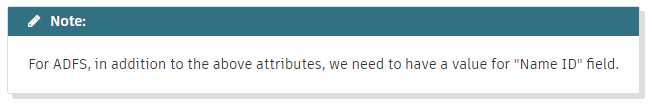

Have your IT/Domain Admin add the Name ID attribute to the existing list:


Steps to complete this can be found here: Active Directory Federated Services (AD FS) Configuration

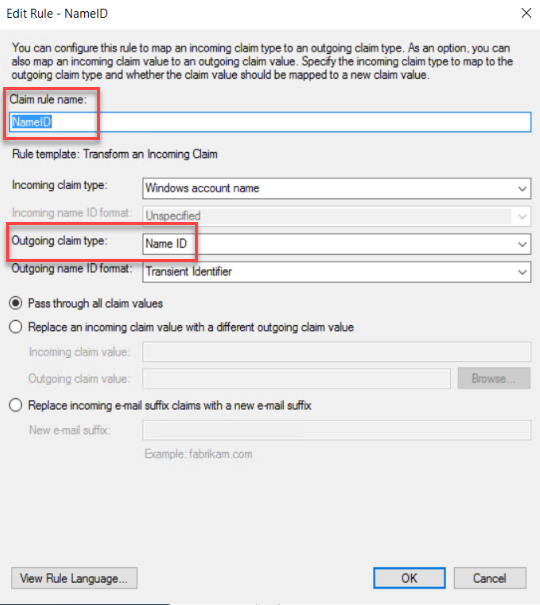

Enter the rule name (e.g.,NameId), select the claim typeWindows account name, set the outgoing claim type toName ID, and select the ID FormatTransient Identifier. Then click Finish.

If the issue persists, there are additional steps to try here: “Request error There was a problem opening this page.” when signing in using Autodesk Single Sign-On (SSO)

If done correctly, after testing the connection again, you should see the following:
